600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades

Name: 600kgH 45kw Pvc Pulverizer Miller With Rotor Blades
Brand: BEISU
Price: 15 USD

China 600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades factory

Place of Origin : CN

Brand Name : BEISU

Certification : ISO

Supply Ability : 200 Set/Sets per Year

Packaging Details : Film packing or wood package as customer requirements

MOQ : >=1 Sets

Price : $15,000.00

Output (kg/h) : 500 - 600kg/h

Feeding Size (mm) : 8 - 10 mm

Output Size (mesh) : 20 - 80 mesh

Power (kW) : 45

Range of Spindle Speed(r.p.m) : 2900 - 3700 r.p.m

Type : Pulverizer

Voltage : 220V/380V/415V/440V

Dimension(L*W*H) : 2000mm*2800mm*3200mm

Weight (KG) : 2000 KG

Key Selling Points : Automatic

Applicable Industries : Manufacturing Plant

Raw material : PVC

Motor power : 90Kw

Material blade : High alloy steel

Blade type : Disc

Off fan blower motor power : 1.1Kw

Fan blower motor power : 11Kw

Bearing brand : NSK

OIL filling system : Oil pump

Dust collection type : Bag

Contactor brand : SIEMENS

Port : SHANGHAI or NINGBO PORT

Contact Now

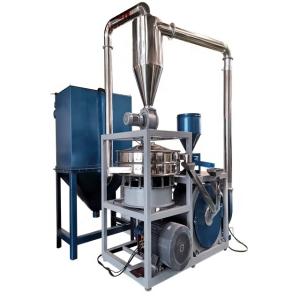

600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades

Application of SMF-800 PVC pulverizer miller: The high-speed and high-efficiency pulverizer manufactured by Beisu Machinery is especially suitable for TPU, LLDPE, PVC, PE, PET, EVA, PP, PA, rubber, and various rigid, soft, elastomer, low-temperature materials, and film materials. , Sheet thermoplastic materials. According to the classification of the grinding materials, the mills are mainly divided into two categories: rotor (turbine) mills and disc mills.

The working principle of SMF-800 PVC pulverizer miller The high-speed rotation of the grinding disc driven by the main shaft of the plastic pulverizer collides with the fixed cutter disc, cutting the material into powder (without sieve). The ground fine powder is brought into the vibrating screen along with the circulating air of the blower for sorting. The coarse material falls back to regrind, and the qualified fine powder enters the finished product storage with the cyclone and is discharged through the powder outlet pipe. That is the finished product. The air is discharged from the dust collector.

Model	380	610	800
Grinding Disc Diameter(mm)	380	610	800
Main Motor Power(kw)	30	45	55
End Plastic Powder Size	10-100mesh	10-100mesh	10-100mesh
Cooling Method	Air/Water cooling	Air/Water cooling	Air/Water cooling
Outout(kg/h)	PVC:200kg/h PE:150kg/h PP:80kg/h	PVC:350kg/h PE:250kg/h PP:160kg/h	PVC:500kg/h PE:350kg/h PP:200kg/h

Main Features of SMF-800 PVC pulverizer miller:

A1: The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
A2: The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
A3: Easy installation and maintenance, just open the door to clean up.
A4: The whole milling process is sealed, without dust leakage.
A5: Full automatic design, automatically feeding, discharging and sorting.
A6: Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine tuning.
A7: The mill use the water and wind double cooling system.
A8: With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
